Product Description

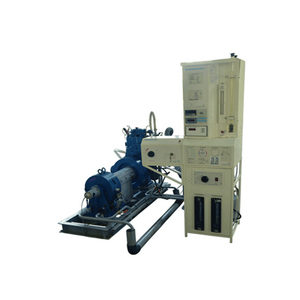

The setup consists of single cylinder four stroke VCR (Variable Compression Ratio) Research engine connected to eddy current dynamometer. It is provided with necessary instruments for combustion pressure crank angle airflow fuel flow temperatures and load measurements. These signals are interfaced to computer through high speed data acquisition device. The set up has standalone panel box consisting of air box twin fuel tank manometer fuel measuring unit transmitters for air and fuel flow measurements process indicator and piezo powering unit. Rotameters are provided for cooling water and calorimeter water flow measurement.

In petrol mode engine works with programmable Open ECU Throttle position sensor (TPS) fuel pump ignition coil fuel spray nozzle trigger sensor etc. The setup enables study of VCR engine performance for both Diesel and Petrol mode and study of ECU programming. Engine performance study includes brake power indicated power frictional power BMEP IMEP brake thermal efficiency indicated thermal efficiency Mechanical efficiency volumetric efficiency specific fuel consumption Air fuel ratio heat balance and combustion analysis.

Features

Changing CR without stopping the engine
Study of Open ECU
Performance optimization with ECU programming
Diesel and Petrol operation
Diesel injection point advancement
Electric starting arrangement
P0-PV plots IP IMEP FP indication
Combustion analysis

Instrumentation

Product is supplied with best quality instruments. The components like Open ECU (PE USA) Combustion pressure sensor (PCB Piezotronics USA) Crankangle sensor(Kubler Germany) Fuel flow transmitter(Yokogawa Japan) Pressure transmitter(Wika Germany) High speed data acquisition device (National instruments USA) are of MNC grades.

Open ECU

Fuel Control with fuel table
Barometric Pressure Acceleration
Deceleration Battery Air Temp Coolant Temp and Starting compensations
Adjustable injection timing control
Adjustable ignition control
Built in igniters
Advanced diagnostic features
Advanced tuning software
Ethernet connection

EngineSoft is Labview based software package developed by Apex Innovations Pvt. Ltd. for engine performance monitoring system. EngineSoft can serve most of the engine testing application needs including monitoring reporting data entry data logging. The software evaluates power efficiencies fuel consumption and heat release. Various graphs are obtained at different operating condition. While on line testing of the engine in RUN mode necessary signals are scanned stored and presented in graph. Stored data file is accessed to view the data graphical and tabular formats. The data in excel format can be used for further analysis.

Specification

Product	Research Engine test setup 1 cylinder 4 stroke Multifuel VCR Code 240
Engine	Make Kirloskar Single cylinder 4 stroke water cooled stroke 110 mm bore 87.5 mm 661 cc. Power 3.5 KW 1500 rpm CR range 1218. Diesel mode 3.5 KW 1500 rpm CR range 1218. Injection variation 0250 BTDC Petrol mode 4.5 KW 1500 rpm Speed range 12001800 rpm CR range 610
VCR arrangement	CR change is accomplished with special features as below The compression ratio can be changed without stopping the engine. Without changing the combustion chamber geometry and cylinder head. It is furnished with specially designed tilting cylinder block mechanism.
Dynamometer	Type eddy current water cooled with loading unit
Propeller shaft	Make Hindustan Hardy with universal joints
ECU	Make PE USA Model PE3 full build potted enclosure. Includes peMonitorpeViewer software
Common rail	With pressure sensor and pressure regulating valve
Calorimeter	Type Pipe in pipe
EGR	Water cooled SS Range 015%
Injector	Type Solenoid driven
Piezo sensor	Make PCB USA Combustion: Range 350Bar with low noise cable
Crank angle sensor	Make Kubler Germany Resolution 1 Deg Speed 5500 RPM with TDC pulse.
Data acquisition device	Make NI Instrument USA NI USB6210 16bit 250kS/s.
Temperature sensor	Make Radix Type RTD PT100 and Thermocouple Type K
Temperature transmitter	Make ABUSTEK USA Type two wire Input RTD PT100 Range 0-100 Deg COutput 4-20 mA and Type two wire Input Thermocouple
Load sensor	Make VPG Sensotronics Load cell type strain gauge range 050 Kg
Fuel flow transmitter	Make Yokogawa Japan DP transmitter Range 0500 mm WC
Fuel tank	Capacity 15 lit Type Duel compartment with fuel metering pipe of glass
Calorimeter	Pipe in pipe
Air flow transmitter	Make Wika Germany Pressure transmitter Range 250 mm WC
Air box	M S fabricated with orifice meter and manometer
Software	Engine soft Engine performance analysis software
Rotameter	Make Eureka Engine cooling 40400 LPH Calorimeter 25250 LPH
Pump	Make Kirloskar Type Monoblock
Overall dimensions	W 2000 x D 2500 x H 1500 mm
