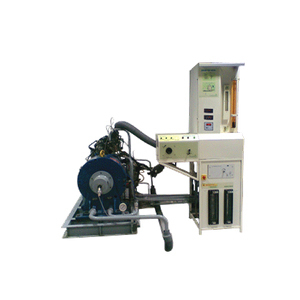

Multi Cylinder Automotive Petrol Engine Test Rig
Product Details:
X
Product Description
The setup consists of three cylinder four stroke petrol (MPFI) engine connected to Eddy current dynamometer for engine loading. The setup has stand alone type independent panel box consisting of air box fuel tank manometer fuel measuring unit digital speed indicator and digital temperature indicator. Engine jacket cooling water inlet outlet and calorimeter temperature is displayed on temperature indicator. Rotameters are provided for cooling water and calorimeter flow measurement.
The setup enables study of engine for brake power BMEP brake thermal efficiency volumetric efficiency specific fuel consumption air fuel ratio and heat balance. Provision is also made for conducting Morse test. Set up is supplied with MS Excel program for Engine Performance Analysis
Features
- MS Excel sample calculation
- Digital non contact speed indication
- Digital temperature indication
- Digital load indication
- Box type manometer for air flow
- Rotameter for water flow
- Morse test
Range of Experiments
- Study of engine performance for power efficiencies fuel consumption air fuel ratio and heat balance
- Morse test
Specification
| Product | Engine test setup 3 cylinder4 stroke Petrol |
| Product code | 231 |
| Engine | Make Maruti Model Maruti 800 Type 3 Cylinder 4 Stroke Petrol (MPFI) water cooled Power 27.6Kw at 5000 rpm Torque 59 NM at 2500rpmstroke 72 mm bore 66.5mm 796 cc CR 9.2 |
| Dynamometer | Type Eddy current water cooled |
| Propeller shaft | With universal joints |
| Air box | M S fabricated with orifice meter and manometer |
| Fuel tank | Capacity 15 lit with glass fuel metering column |
| Calorimeter | Type Pipe in pipe |
| Temperature sensor | Thermocouple Type K |
| Temperature indicator | Digital multi channel with selector switch |
| Speed indicator | Digital with non contact type speed sensor |
| Load sensor | Load cell type strain gauge range 0-50 Kg |
| Load indicator | Digital Range 0-50 Kg Supply 230VAC |
| Rotameter | Engine cooling100-1000 LPH Calorimeter 25-250 LPH |
| Pump | Type Monoblock |
| Overall dimensions | W 2000 x D 2750 x H 1750 mm |
Utilities Required
Electric supply
230 10 VAC 50 Hz 1 phase
Water supply
Continuous clean and soft water supply 5000 LPH at 10 m. head. Provide tap with 1 BSP size connection
