Product Description

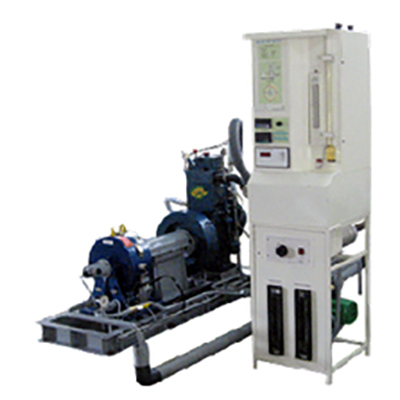

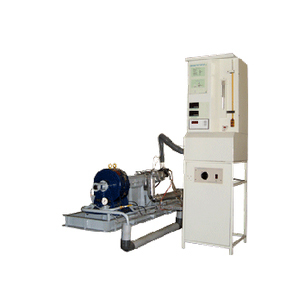

The setup consists of single cylinder four stroke CRDI VCR (Variable Compression Ratio) engine connected to eddy current dynamometer. It is provided with necessary instruments for combustion pressure crank angle airflow fuel flow temperatures and load measurements. These signals are interfaced to computer through high speed data acquisition device. The set up has stand alone panel box consisting of air box twin fuel tank manometer fuel measuring unit transmitters for air and fuel flow measurements process indicator and piezo powering unit. Rotameters are provided for engine cooling water and calorimeter water flow measurement.

CRDI VCR engine works with programmable Open ECU for Diesel injection fuel injector common rail with rail pressure sensor and pressure regulating valve crank position sensor fuel pump and wiring harness. The setup enables study of CRDI VCR engine performance with programmable ECU at different compression ratios and with different EGR. Engine performance study includes brake power indicated power frictional power BMEP IMEP brake thermal efficiency indicated thermal efficiency Mechanical efficiency volumetric efficiency specific fuel consumption Air fuel ratio heat balance and combustion analysis.

Features

• Performance optimization with Open ECU
• Tests at different CR and EGR
• Plotting of Torque and Power Curves
• Determination of Specific Fuel Consumption
• Determination of Volumetric Efficiency and Air Fuel Ratio
• Determination of Mechanical Efficiency
• Determination of the Frictional Power
• Heat Balance Sheet
• Performance Test under different Load
• P0 and PV Diagram
• Combustion analysis

Instrumentation

Product is supplied with best quality instruments. The components like Open ECU (Nirai7rSweden) Combustion pressure sensor (PCB Piezotronics USA) Crankangle sensor(Kubler Germany) Fuel flow transmitter(Yokogawa Japan) Pressure transmitter(Wika Germany) High speed data acquisition device (National instruments USA) are of MNC grades.

VCR Principle

Single cylinder four stroke water cooled Kirloskar engine modified to CRDI VCR Diesel. The compression ratio can be changed without stopping the engine and without altering the combustion chamber geometry by specially designed tilting cylinder block arrangement.
